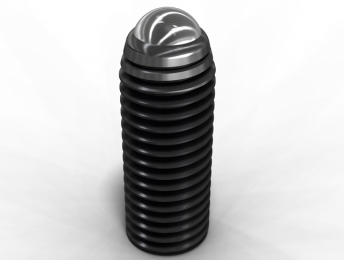

Swivel Clamping Screw Round End PT16

Round End

Key Features

  • Ideal for clamping irregular shaped workpieces
  • Heat treated to HRC 62
  • Serrated and smooth versions available

Description

Swivel clamping screw with round end. These screws are ideal for clamping irregular shaped workpieces. The screws are manufactured from SCM435(JIS) / 34CrMo4(DIN) heat treated to HRC 30 - 35 and the balls are manufactured from SCM21(JIS) / 34CrM04(DIN) heat treated to HRC 62. Serrated and smooth versions are also available.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Thread Length (mm) Hex key (mm) Price
1 PT16A-0408 M 4 8 2 £3.39
1 PT16A-0410 M 4 10 2 £3.39
1 PT16A-0412 M 4 12 2 £3.39
1 PT16A-0416 M 4 16 2 £3.39
1 PT16A-0510 M 5 10 2.5 £3.39
1 PT16A-0512 M 5 12 2.5 £3.39
1 PT16A-0516 M 5 16 2.5 £3.39
1 PT16A-0520 M 5 20 2.5 £3.39
1 PT16A-0525 M 5 25 2.5 £3.39
1 PT16A-0610 M 6 10.8 3 £3.39
1 PT16A-0615 M 6 13.5 3 £3.39
1 PT16A-0616 M 6 16.8 3 £3.39
1 PT16A-0620 M 6 20.8 3 £3.50
1 PT16A-0625 M 6 23.5 3 £3.50
1 PT16A-0812 M 8 12 4 £3.50
1 PT16A-0816 M 8 17.2 4 £3.50
1 PT16A-0820 M 8 20 4 £3.50
1 PT16A-0825 M 8 26.2 4 £3.50
1 PT16A-0830 M 8 30 4 £3.62
1 PT16A-1014 M10 15 5 £3.39
1 PT16A-1015 M10 16 5 £3.50
1 PT16A-1020 M10 21 5 £3.62
1 PT16A-1025 M10 26 5 £3.85
1 PT16A-1030 M10 31 5 £3.97
1 PT16A-1035 M10 36 5 £4.09
1 PT16A-1040 M10 41 5 £4.44
1 PT16A-1218 M12 18.2 6 £4.79
1 PT16A-1220 M12 23.2 6 £4.90
1 PT16A-1230 M12 31.2 6 £5.14
1 PT16A-1240 M12 41.2 6 £5.49
1 PT16A-1250 M12 51.2 6 £6.42
1 PT16A-1625 M16 25.6 8 £7.82
1 PT16A-1635 M16 35.6 8 £8.17
1 PT16A-1645 M16 45.6 8 £8.87
1 PT16A-1655 M16 55.6 8 £9.57
1 PT16A-1665 M16 65.6 8 £10.15
1 PT16A-2030 M20 32 10 £8.75
1 PT16A-2040 M20 42 10 £9.45
1 PT16A-2050 M20 52 10 £10.27
1 PT16A-2060 M20 62 10 £10.97
1 PT16A-2090 M20 92 10 £12.60
1 PT16A-2435 M24 37 12 £15.75
1 PT16A-2450 M24 52 12 £16.92
1 PT16A-2480 M24 82 12 £20.19
