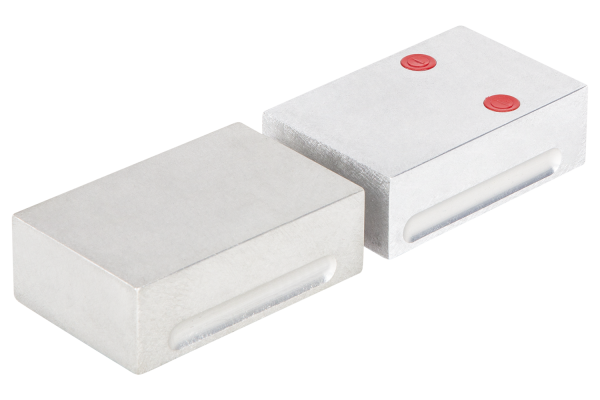

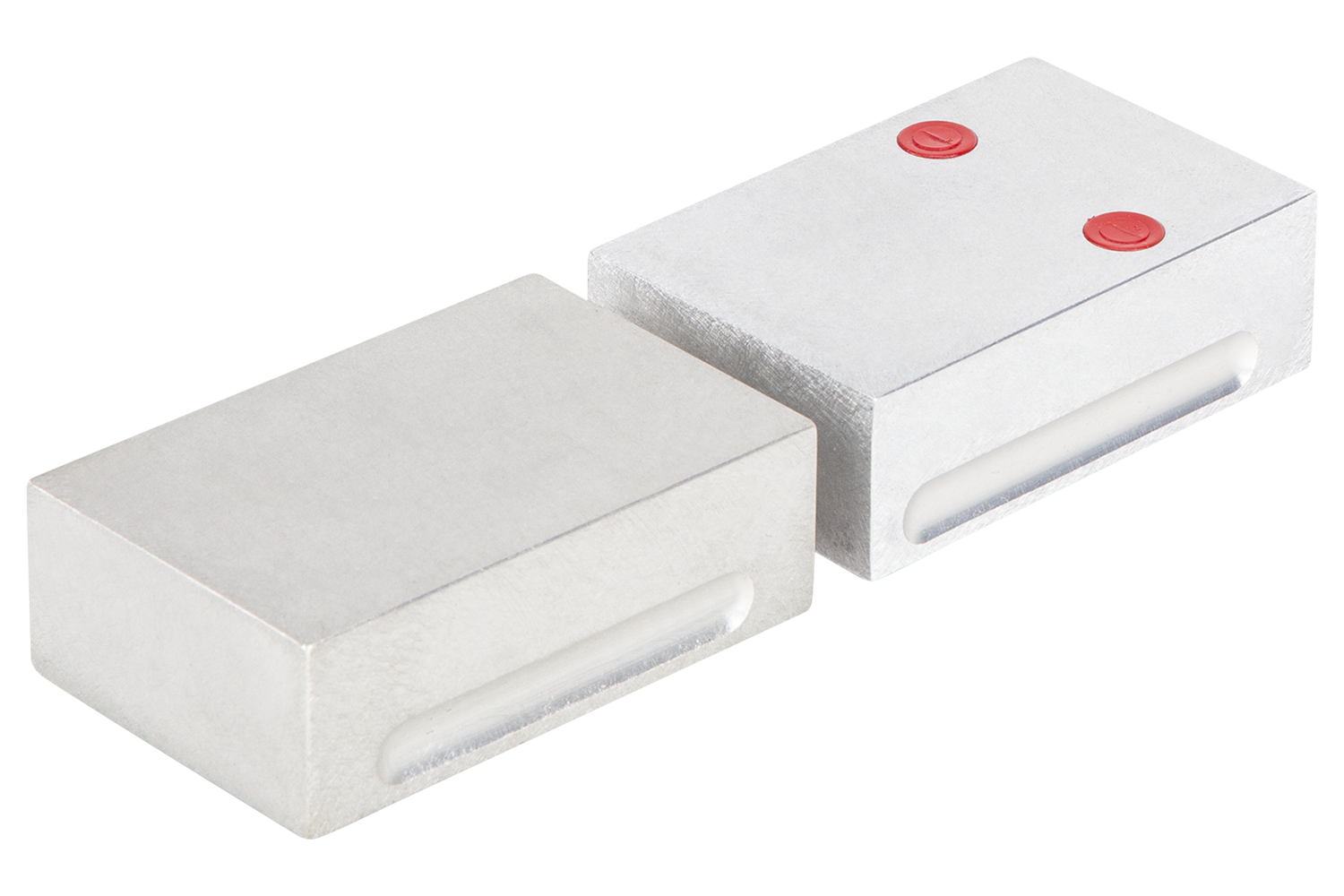

System 5 0520/0525 Single Station Jaw Sets
Fully Machineable Single Station Jaw Sets
Key Features
- Change jaws in seconds and complete a full setup in a few minutes
- Precise loction of jaws means your datum is preserved every time you remove the jaws. Once a job is setup, it stays setup.
- Machinable workholding means complex shaped workpieces are easy to grip
- Single station jaws can grip larger workpieces with just a quick jaw change
Description
Single Station Machinable Jaw Sets increase the flexibility of your system by eliminating the need to completely switch fixtures for jobs requiring greater holding capacity. Simply QwikChange the jaws and the set-up is ready in minutes. These jaws are compatible with Qwik-loks and Multi-Loks in both 0520 and 0525 sizes and are available in standard size or oversize. All jaws are available as sets or individually.
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Description | Width (mm) | Height (mm) | Max. Holding Capacity (mm) | Length (mm) | Number of jaws | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 080-2580-01 | Single Station Set | 49 | 25 | 185/235 | 2 | £132.00 | |||
| 1 | 080-2582-01 | Single Station Set | 80 | 35 | 185/235 | 2 | £150.00 | |||
| 1 | 080-2511-01 | Individual Movable jaw | 49 | 25 | 75 | 1 | £63.00 | |||
| 1 | 080-2512-01 | Individual Movable jaw | 80 | 35 | 75 | 1 | £74.00 | |||
| 1 | 080-2571-01 | Individual Fixed Jaw | 49 | 25 | 75 | 1 | £81.00 | |||
| 1 | 080-2572-01 | Individual Fixed Jaw | 80 | 35 | 75 | 1 | £92.00 |
