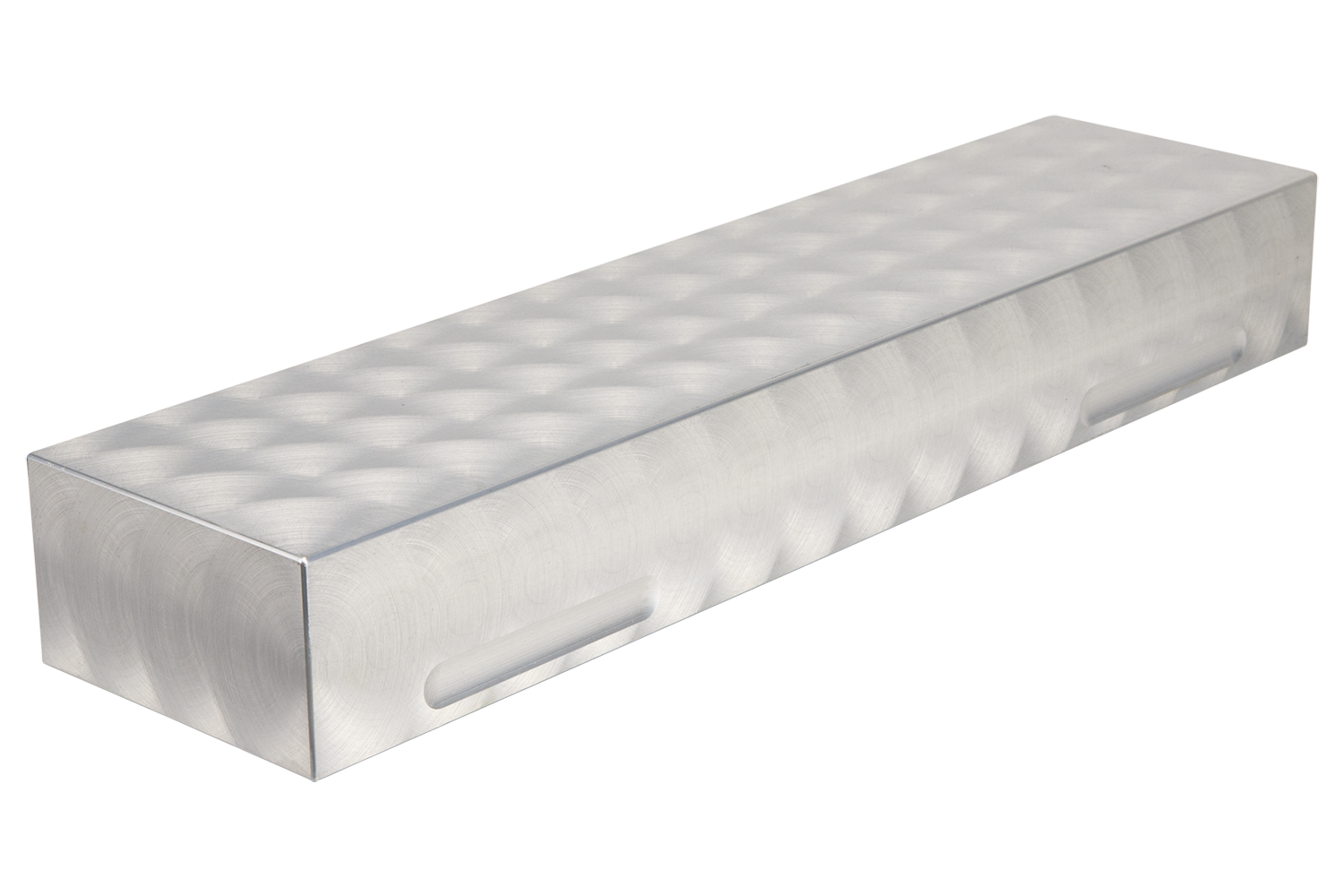

System 5 1040 Machineable Faceplates
Fully Machineable Aluminium Faceplates
Key Features
- Switch between jaws and faceplates in seconds
- Clamp more complex workpieces
- Clamp more components at a time
- Load faceplates outside the machine for better efficiency
Description
System 5 1040 Machineable Faceplates form the base for a fixture to mount directly to the QwikLOK. They are ideal for complex workpieces that cannot be mounted in soft jaws and also allow smaller workpieces to be clamped in larger quantities. Combine a faceplate with simple workstops and clamps to build a multi component fixture. That can be loaded outside the machine. Add another identical faceplate and you have a manual pallet changing system to virtually eliminate loading time. Height tolerance is. +- 0.5mm
Chick Jaw Finder
Chick USA
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Width (mm) | Height (mm) | Length (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 5FP1040-10-40 | 99 | 40 | 398 |
|
£292.00 | ||
| 2 | 5FP1040-10-55 | 99 | 55 | 398 |
|
£354.00 | ||
| 3 | 5FP1040-15-40 | 148 | 40 | 398 |
|
£421.00 | ||
| 4 | 5FP1040-15-55 | 148 | 55 | 398 |
|
£501.00 |
