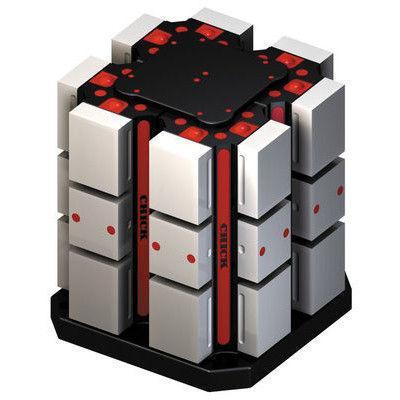

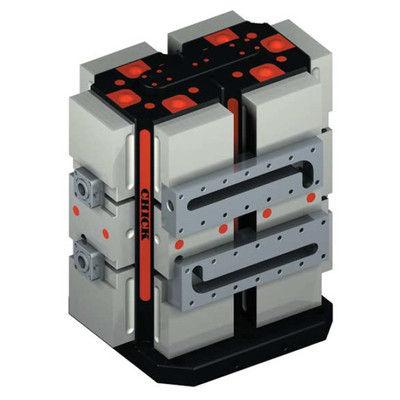

System 5 12/16 station MultiLOK

Multiple Sided Tooling Column using System 5

Key Features

  • Multiple machinable jaw options means even the most complex parts can be clamped with ease
  • Change jaws in seconds and complete a full setup in a few minutes
  • Precise loction of jaws means your datum is preserved every time you remove the jaws. Once a job is setup, it stays setup.
  • Flexibility of being able to hold one extremely large part over multiple stations or clamp multiple average sized part per face.

Description

Multiloks are the easiest way to apply the versatility of System 5 to a horizontal milling machine. They are the most versatile products of their kind. They can take full advantage of your horizontal CNC machine by providing the accessibility of multiple part sides per station, thus combining operations and decreasing the cycle time. 12 and 16 station multiloks have the flexibility of being able to hold one extremely large part over multiple stations or clamping multiple average sized parts per face. For components that are not suited to soft jaws, multiloks will also accept machinable faceplates to create interchangeble fixtures. 12 and 16 station multiloks would suit machine shops where flexibility is a high priority.

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Size Swing (mm) Height (mm) Width (mm) Dual Station (mm) Number of stations Drawings Price
1 5ML1040-41-12 1040 412 412 400 180 12
£12,878.00
2 5ML1040-41-16 1040 476 412 400 180 16
£22,908.00
3 5ML1550-41-12 1550 521 519 500 225 12
£19,356.00
4 5ML1550-41-16 1550 609 519 500 225 16
£30,676.00
