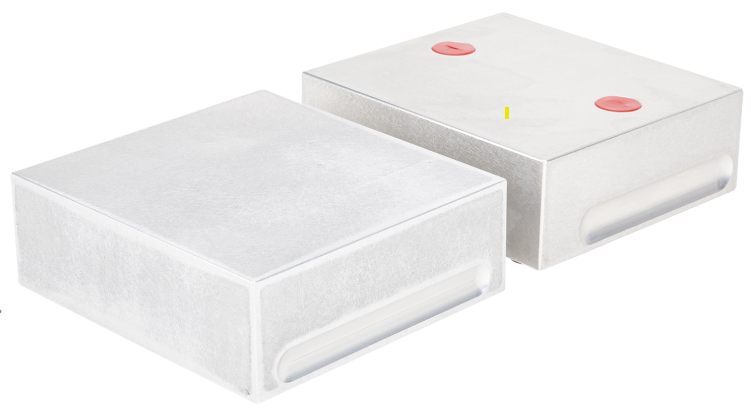

System 5 1540 Single Station Jaw Sets

Fully Machineable Single Station Jaw Sets

Key Features

  • Change jaws in seconds and complete a full setup in a few minutes
  • Precise loction of jaws means your datum is preserved every time you remove the jaws. Once a job is setup, it stays setup.
  • Machinable workholding means complex shaped workpieces are easy to grip
  • Single station jaws can grip larger workpieces with just a quick jaw change

Description

Single Station Machinable Jaw Sets increase the flexibility of your system by eliminating the need to completely switch fixtures for jobs requiring greater holding capacity. Simply QwikChange the jaws and the set-up is ready in minutes. These jaws are compatible with 1540 Qwik-loks and 1540 Multi-Loks and are available in a range of sizes. All jaws are available as sets or individually.

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Description Width (mm) Height (mm) Holding Capacity (mm) Length (mm) Number of jaws Drawings Price
1 5SS1540-15-50 Single Station Set 148 50 125 - 380 2
£357.00
2 5SS1540-15-70 Single Station Set 148 70 125 - 380 2
£421.00
3 5SS1540-20-50 Single Station Set 198 50 125 - 380 2
£419.00
4 5SS1540-20-70 Single Station Set 198 70 125 - 380 2
£601.00
5 5MJ1540-15-50 Individual Movable jaw 148 50 135 1 £190.00
6 5MJ1540-15-70 Individual Movable jaw 148 70 135 1 £221.00
7 5MJ1540-20-50 Individual Movable jaw 198 50 135 1 £252.00
8 5MJ1540-20-70 Individual Movable jaw 198 70 135 1 £303.00
9 5SJ1540-15-50 Individual Fixed Jaw 148 50 135 1 £203.00
10 5SJ1540-15-70 Individual Fixed Jaw 148 70 135 1 £241.00
11 5SJ1540-20-50 Individual Fixed Jaw 198 50 135 1 £274.00
12 5SJ1540-20-70 Individual Fixed Jaw 198 70 135 1 £314.00
