System 5 6-Sided MultiLOK

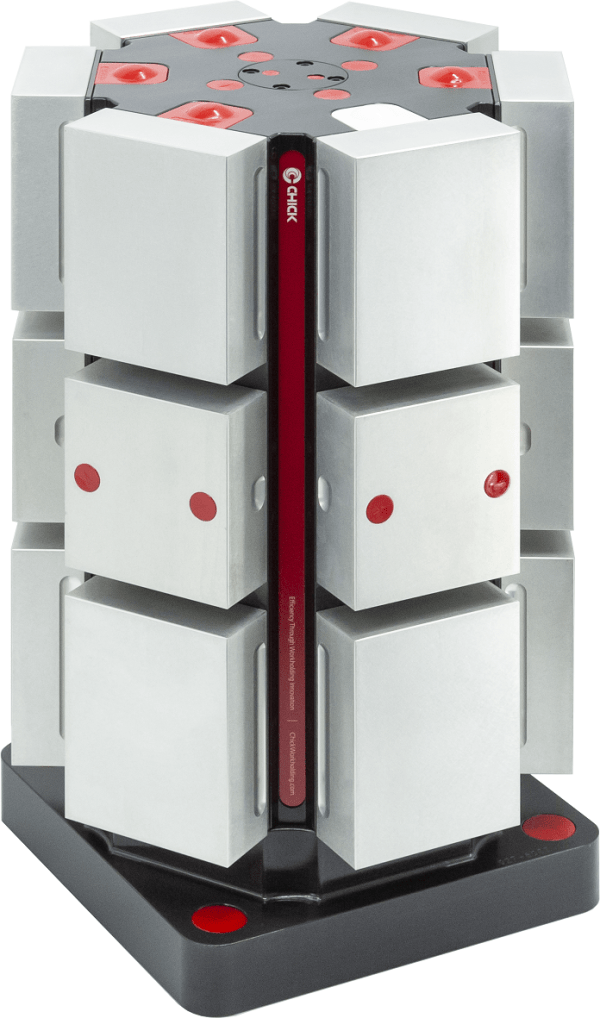

Multiple Sided Tooling Column using System 5
Key Features
- Multiple machinable jaw options means even the most complex parts can be clamped with ease
- Change jaws in seconds and complete a full setup in a few minutes
- Precise loction of jaws means your datum is preserved every time you remove the jaws. Once a job is setup, it stays setup.
- Suitable for high volume production
Description
Multiloks are the easiest way to apply the versatility of System 5 to a horizontal milling machine. They are the most versatile products of their kind. They can take full advantage of your horizontal CNC machine by providing the accessibility of three part sides per station, thus combining operations and decreasing the cycle time. Six sided multiloks provide clamping for 12 components with dual station jaws and 6 components with single station jaws. For components that are not suited to soft jaws, Multiloks will also accept machinable faceplates to create interchangeble fixtures. Six sided MultiLOKs are suited to high volume production.
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Size | Swing (mm) | Height (mm) | Width (mm) | Single Station (mm) | Dual Station (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 082-6200 | 520 | 235 | 203 | 230 | 185 | 85 |
|
£8,750.00 | ||
| 2 | 082-6201 | 525 | 235 | 253 | 230 | 235 | 110 |
|
£8,750.00 | ||
| 3 | 5ML1030-61 | 1030 | 316 | 305 | 300 | 280 | 130 |
|
£ Price on application | n/a | |
| 4 | 5ML1040-61 | 1040 | 316 | 405 | 300 | 380 | 180 |
|
£12,533.00 | ||
| 5 | 5ML1540-61 | 1540 | 436 | 407 | 410 | 380 | 175 |
|
£17,708.00 | ||
| 6 | 5ML1550-61 | 1550 | 436 | 507 | 410 | 480 | 225 |
|
£17,708.00 |
