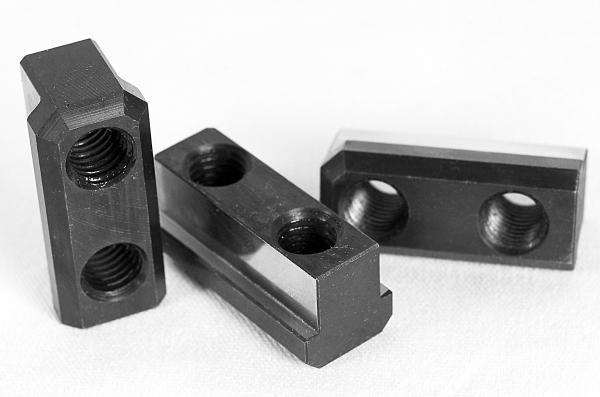

T-Nuts to suit N Series
Set of 3 T-Nuts
Key Features
- Set of 3 T-Nuts for mounting Jaws onto Base Jaws
- Includes set of Bolts to Suit
- Custom T-Nuts are available
Description
T-Nuts to suit N Series used for the mounting of jaws onto the base jaws on a power chuck. These are supplied with the bolts required. Keeping spare t-nuts can result in reducing setup times. Jaw Finder
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Chuck to Suit | Width (mm) | Length (mm) | Bolt Size | Bolt Pitch (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | TNS-N04 | N04 | 10 | 28 | M8 | 14 | £106.00 | ||
| 1 | TNS-B06 | N06 | 12 | 36.5 | M10 | 20 | £106.00 | ||
| 1 | TNS-B08 | N08 | 14 | 48 | M12 | 25 | £114.00 | ||
| 1 | TNS-B10 | N10 | 16 | 55 | M12 | 30 | £136.00 | ||
| 1 | TNS-B12 | N12 | 18 | 55.5 | M14 | 30 | £168.00 |
