Square T-Slot Base Plate
Slotted Fixture Plate to suit Horizontal Machining Centre
Key Features
- T-Slots to allow for Flexible use for Fixturing Products
- Ground Flat and Parallel
- Threaded Holes for Side-Location
Description

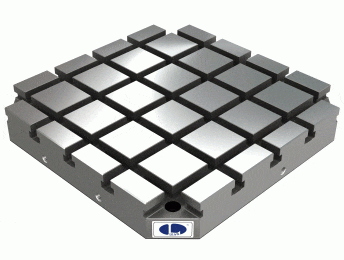

Square T-Slot Base Plate Cast iron fixture plate with T-Slots . Grid pattern with slots for versatility of set-ups. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the fixture plate. Designed specifically for use on horizontal machining centres.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Size (mm) | Height (mm) | Pitch of T-Slots (mm) | Size of T-Slots (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BP06-60400-0400-14 | 400 | 60 | 80 | 14 |
|
£2,055.67 | ||
| 2 | BP06-60500-0500-14 | 500 | 60 | 100 | 14 |
|
£2,711.34 | ||
| 3 | BP06-60630-0630-14 | 630 | 60 | 125 | 14 |
|
£3,750.84 | ||
| 4 | BP06-60800-0800-14 | 800 | 60 | 160 | 14 |
|
£5,422.67 | ||
| 5 | BP06-75400-0400-18 | 400 | 75 | 80 | 18 |
|
£2,128.00 | ||
| 6 | BP06-75500-0500-18 | 500 | 75 | 100 | 18 |
|
£2,808.17 | ||
| 7 | BP06-75630-0630-18 | 630 | 75 | 125 | 18 |
|
£3,927.00 | ||
| 8 | BP06-75800-0800-18 | 800 | 75 | 160 | 18 |
|
£5,636.17 |
