T-Slot Clamps
Low Profile Bed Mounted Clamps
Key Features
- Locks in machine T-slot for low profile clamping.
- Makes fast set-ups possible right on the machine table
- Brass hex follows contour of irregular shaped parts
- Packaged as pairs
Description

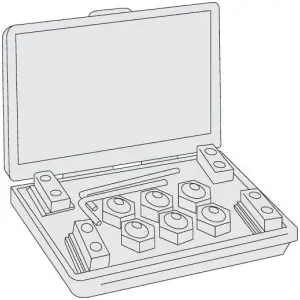

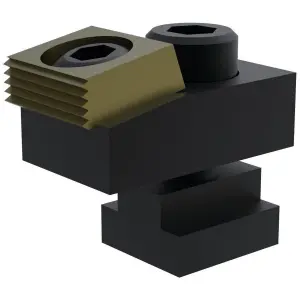

The original MITEE-BITE T-Slot Clamp combines our unique cam action clamping element with a T-nut. The Mitee-Bite Kit Contains 2 Mitee-Bite Fixture Clamps.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | T-Slot (mm/inch) | Cam Screw | Clamp Height (mm/inch) | Holding Force (N/lbs) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 50422 | Metric | 8mm | M6x1.00 | 4.75 | 3558 | £48.62 | ||
| 1 | 50424 | Metric | 10mm | M6x1.00 | 4.75 | 3558 | £48.62 | ||
| 1 | 50426 | Metric | 12mm | M8x1.25 | 4.75 | 3355 | £48.62 | ||
| 1 | 50428 | Metric | 14mm | M10x1.50 | 6.35 | 8895 | £48.62 | ||
| 1 | 50430 | Metric | 16mm | M12x1.75 | 9.53 | 13340 | £48.62 | ||
| 1 | 50432 | Metric | 18mm | M12x1.75 | 9.53 | 13340 | £51.90 | ||
| 1 | 50434 | Metric | 20mm | M16x2.00 | 12.7 | 26680 | £66.44 | ||
| 1 | 50436 | Metric | 22mm | M16x2.00 | 12.7 | 26680 | £96.52 | ||
| 1 | 10420 | Imperial | 3/8 | 1/4-20 | 0.19 | 800 | £ Price on application | n/a | |
| 1 | 10421 | Imperial | 7/16 | 5/16-18 | 0.19 | 800 | £ Price on application | n/a | |
| 1 | 10422 | Imperial | 1/2 | 3/8-16 | 0.25 | 2000 | £ Price on application | n/a | |
| 1 | 10423 | Imperial | 9/16 | 3/8-16 | 0.25 | 2000 | £ Price on application | n/a | |
| 1 | 10424 | Imperial | 5/8 | 1/2-13 | 0.375 | 3000 | £ Price on application | n/a | |
| 1 | 10426 | Imperial | 11/16 | 1/2-13 | 0.375 | 3000 | £ Price on application | n/a |
