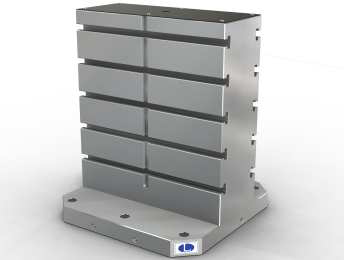

T-Slotted Rectangular Tooling Column
Slotted Cast Iron Tombstone
Key Features
- T-Slots to allow for Flexible use for Fixturing Products
- Ground Flat and Parallel
- Threaded Holes for Side-Location
Description
Cast iron t-slot cube with mounting holes. Grid pattern with slots for versatility of set-ups. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Size of Pallet (mm) | Height of Column (mm) | Width of Column (mm) | Thickness of Column (mm) | Size of Slots (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BP12-400400-0500-14 | 400 | 500 | 400 | 150 | 14 |
|
£3,434.67 | ||
| 2 | BP12-400400-0650-14 | 400 | 650 | 400 | 150 | 14 |
|
£4,637.50 | ||
| 3 | BP12-500500-0600-14 | 500 | 600 | 500 | 200 | 14 |
|
£5,367.84 | ||
| 4 | BP12-500500-0750-14 | 500 | 750 | 500 | 200 | 14 |
|
£6,617.34 | ||
| 5 | BP12-630630-0700-14 | 630 | 700 | 630 | 250 | 14 |
|
£7,631.17 | ||
| 6 | BP12-630630-0850-14 | 630 | 850 | 630 | 250 | 14 |
|
£9,234.17 | ||
| 7 | BP12-800800-0800-14 | 800 | 800 | 800 | 300 | 14 |
|
£10,322.67 | ||
| 8 | BP12-800800-1000-14 | 800 | 1000 | 800 | 300 | 14 |
|
£12,917.34 | ||
| 9 | BP12-10001000-1000-14 | 1000 | 1000 | 1000 | 350 | 14 |
|
£16,188.67 | ||
| 10 | BP12-10001000-1250-14 | 1000 | 1250 | 1000 | 350 | 14 |
|
£18,762.34 | ||
| 11 | BP12-400400-0500-18 | 400 | 500 | 400 | 150 | 18 |
|
£3,434.67 | ||
| 12 | BP12-400400-0650-18 | 400 | 650 | 400 | 150 | 18 |
|
£4,637.50 | ||
| 13 | BP12-500500-0600-18 | 500 | 600 | 500 | 200 | 18 |
|
£5,367.84 | ||
| 14 | BP12-500500-0750-18 | 500 | 750 | 500 | 200 | 18 |
|
£6,933.50 | ||
| 15 | BP12-630630-0700-18 | 630 | 700 | 630 | 250 | 18 |
|
£7,631.17 | ||
| 16 | BP12-630630-0850-18 | 630 | 850 | 630 | 250 | 18 |
|
£9,636.67 | ||
| 17 | BP12-800800-0800-18 | 800 | 800 | 800 | 300 | 18 |
|
£10,322.67 | ||
| 18 | BP12-800800-1000-18 | 800 | 1000 | 800 | 300 | 18 |
|
£13,463.34 | ||
| 19 | BP12-10001000-1000-18 | 1000 | 1000 | 1000 | 350 | 18 |
|
£16,188.67 | ||
| 20 | BP12-10001000-1250-18 | 1000 | 1250 | 1000 | 360 | 18 |
|
£18,762.34 |
