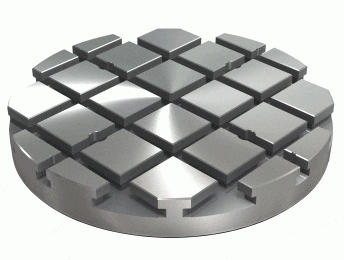

T-Slotted Round Base Plate
Slotted Sub-Plate for 4th/5th Axis
Key Features
- T-Slots to allow for Flexible use for Fixturing Products
- Ground Flat
- Five High Accuracy Location Holes
Description
T-Slotted Round Base Plate Cast Iron Sub Plate to suit rotary table or indexer. T-Slot pattern to allow for easy flexible set-up of fixturing components. Ground flat with Locating Holes for precise loading and quick location.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Diameter (mm) | Thickness (mm) | Size of Slot (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP18-50-0300-14 | 300 | 50 | 14 |
|
£1,116.50 | ||
| 2 | BP18-50-0400-14 | 400 | 50 | 14 |
|
£1,837.50 | ||
| 3 | BP18-65-0500-18 | 500 | 65 | 18 |
|
£2,511.84 | ||
| 4 | BP18-65-0600-18 | 600 | 65 | 18 |
|
£3,889.67 |
