Tail Spindles
Support for Large Work and Trunions
Description

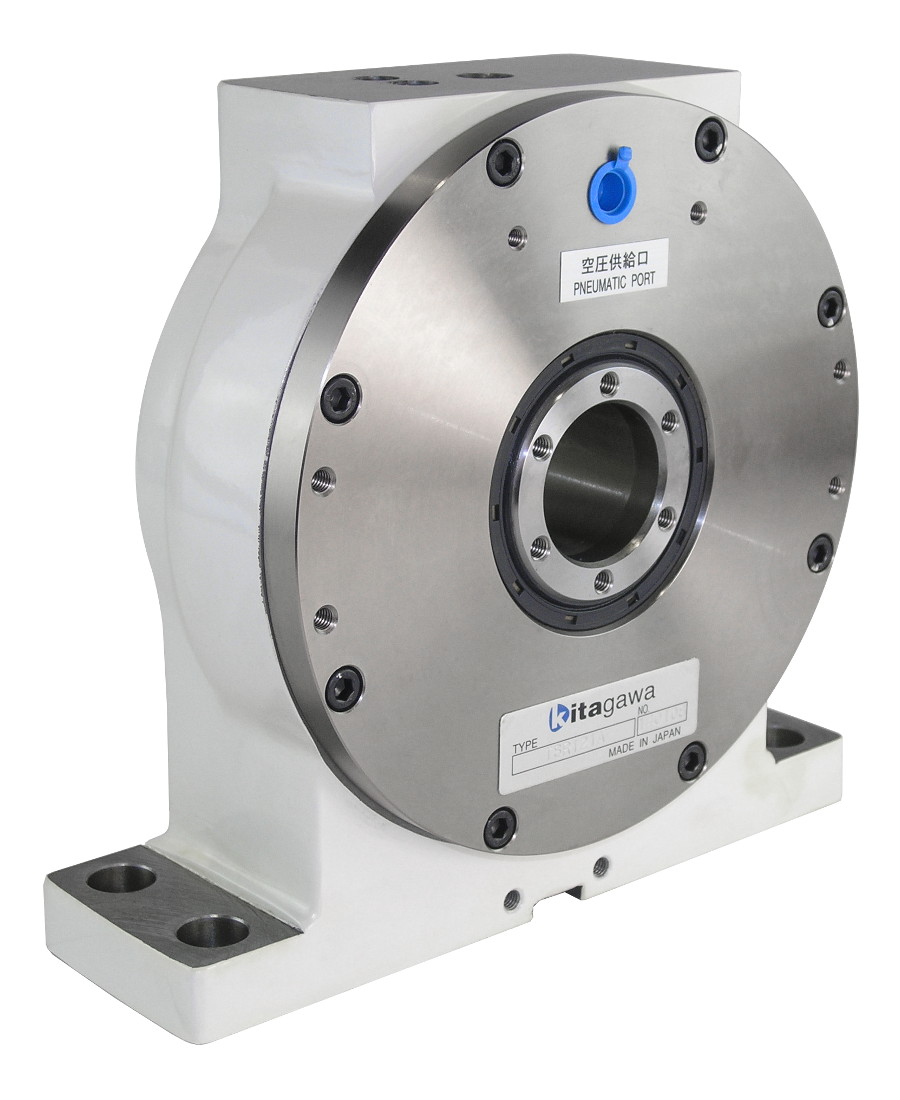

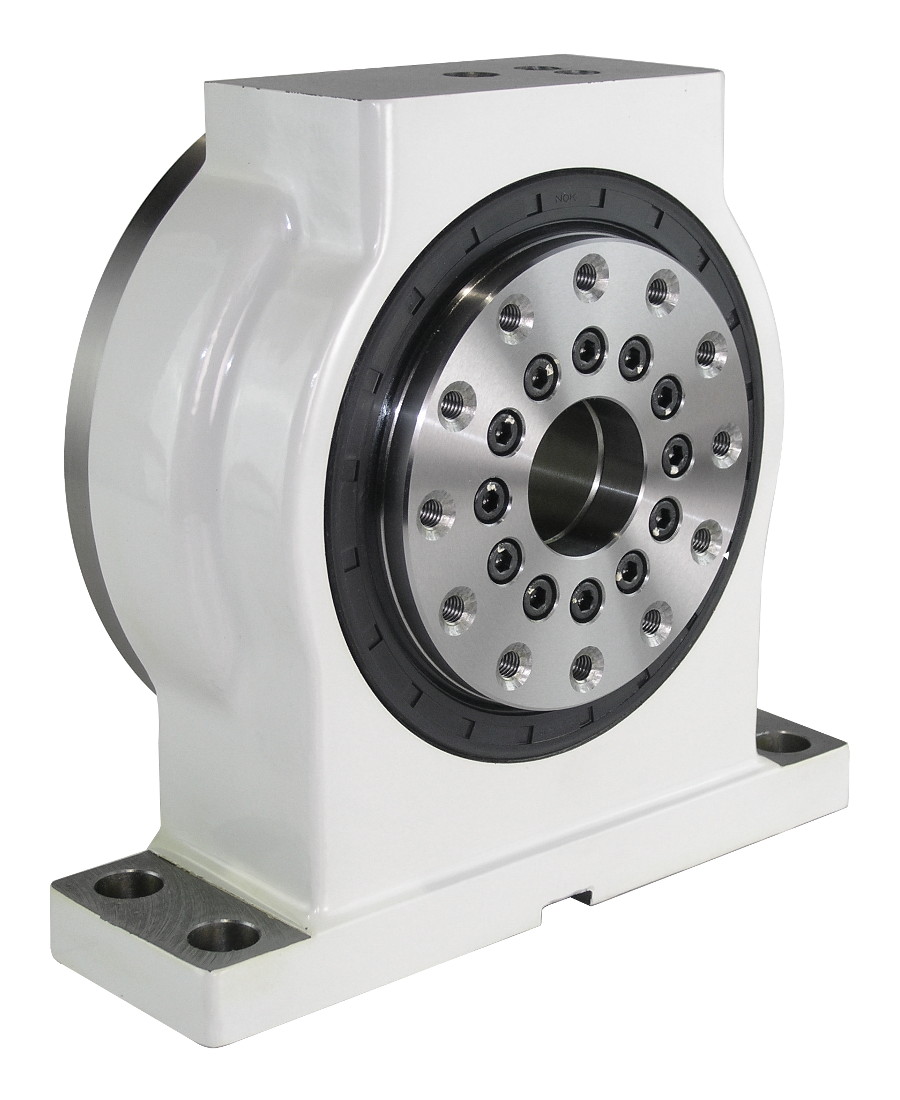

Kitagawa Tail Spindles Support for indexing machining of large work and trunnion assemblies.
- Available with or without clamping mechanism.
- Suitable for supporting many types of jig.
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Centre Height (mm) | Spindle Bore (mm) | Clamping Torque (Nm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | TSR121A | 120 | 40 | 310 | £3,976.00 | ||
| 1 | MSRC140 | 140 | 40 | 400 | £5,744.00 | ||
| 1 | MSR142A | 140 | 40 | 450 | £4,493.00 | ||
| 1 | MSRC150 | 150 | 40 | 400 | £ Price on application | n/a | |
| 1 | MSR181A | 180 | 70 | 600 | £5,012.00 | ||
| 1 | TSR181A45C | 180 | 70 | 600 | n/a | ||
| 1 | Fittings-Hose | n/a |
