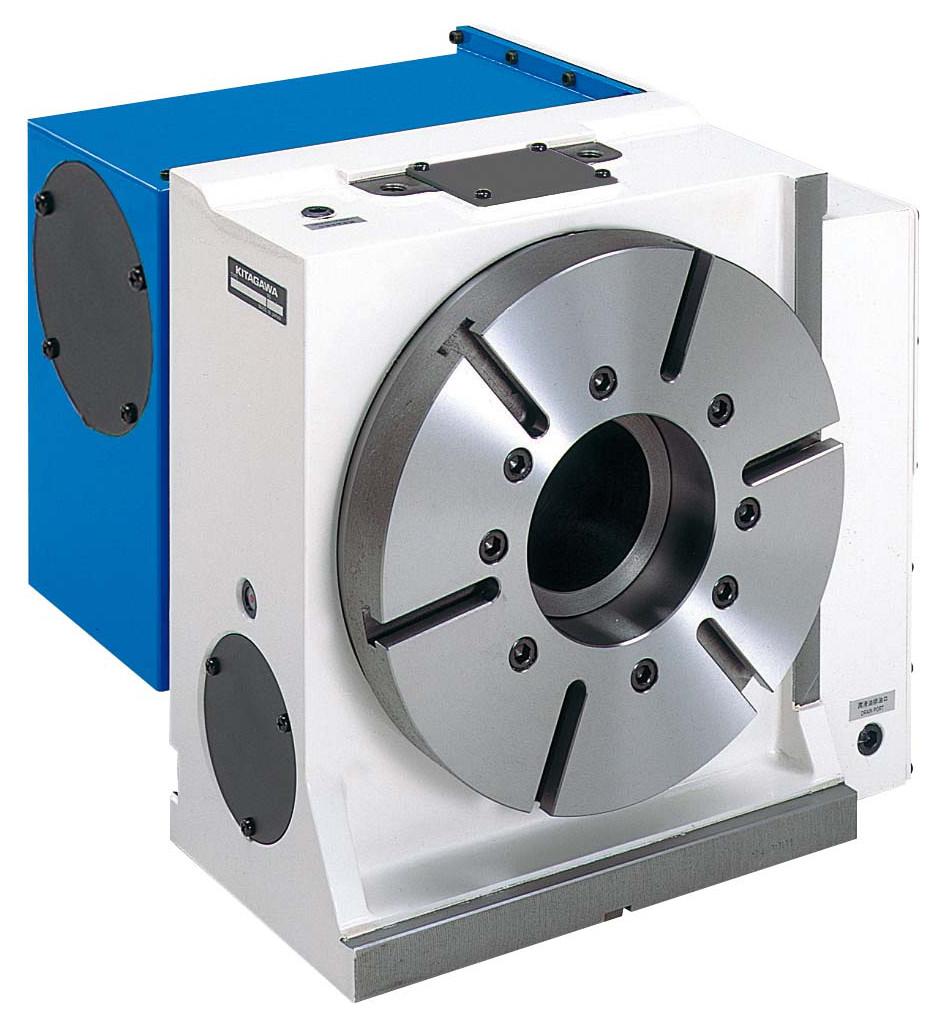

TBX Series
4th Axis with Back Sided Motor
Key Features
- Rear mounted motor makes for a compact rotary table
- Air booster or hydraulic clamping for high rigidity
- High speed and accuracy
- Suitable for heavy machining
Description
TBX Series of Rotary Tables with back side motor to reduce interference with machining area. The TBX range of rotary tables are available with hydraulic clamping or with an integrated air booster and pneumatic clamping. This provides very high levels of clamping torque for rigidity during heavy machining operations. Kitagawa's Rotary Tables are available with optional tailstock, and tail spindle. Price excludes motor and interface cables. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
Kitagawa Rotary Table Buying Guide
Kitagawa Rotary Tables
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TBX160 | 165 | 40 | 120 | 450 | 0.26 | 4 | £11,950.00 | |||
| 2 | TBX200 | 200 | 52 | 140 | 600 | 0.5 | 4 | £12,231.00 | |||
| 3 | TBX250 | 250 | 78 | 180 | 1100 | 0.98 | 4 | £13,021.00 | |||
| 4 | TBX320 | 320 | 110 | 225 | 2600 | 2.24 | 4 |
|
£15,878.00 | ||
| 5 | TBX160RAV00 | 165 | 40 | 120 | 450 | 0.26 | 4 | £22,122.00 | |||
| 6 | TBX200RAV00 | 200 | 52 | 140 | 600 | 0.5 | 4 | £23,105.00 | |||
| 7 | TBX250RAV00 | 250 | 78 | 180 | 1100 | 0.98 | 4 | £23,377.00 | |||
| 8 | TBX320RAV00 | 320 | 110 | 225 | 2600 | 2.24 | 4 | £26,235.00 |
