Description

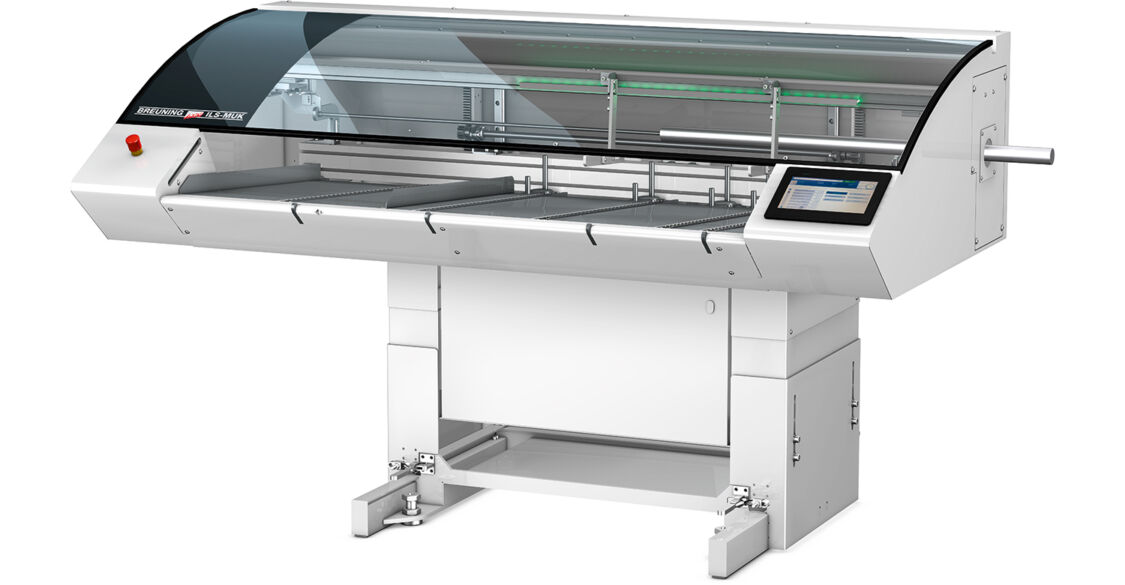

Multi-universal short-bar automatic loader

ILS-MUK 100 III

Application area:

• Ideal for small and medium-sized batches and constrained spaces

Properties:

• Changeover time under one minute at the touch of a button
• Short reloading times thanks to high rapid feed speeds of up to 90 m/minute
• High degree of operating comfort thanks to a 14.5-cm (5.7″) graphic touch display
• Process-reliable supply of rotationally symmetrical profile material
• Minimal energy consumption; no compressed air supply required
• Large storage capacity of up to 7 bars with a material diameter of 100 mm
• Chain guide: extension to 735 mm

​Working range:

• Round material, diameters from 10 mm (optional 6 mm) to 104 mm
• Quadrangle – minimum edge length 6 mm, maximal enveloping circle 102 mm
• Bar lengths of 300 to 1200/1600 mm

Special features:

• Easy replacement of the spindle liner tubes thanks to radial slide of the magazine (optionally axial slide)
