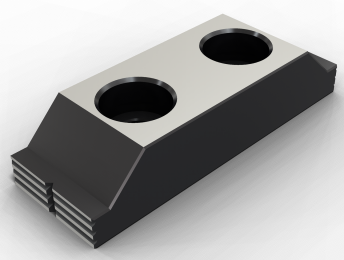

Thin Block Stop
Low Profile Double Sided Stop
Key Features
- Holding Multiple Components with One Stop
- Available Ground or Serrated
- Hole Position to suit 50mm Grid
- Low Profile for holding on less material
Description
Double ended stop to hold 2 components. Low profile clamping surfaces offers more clearance for tooling. Suitable for use with CP12 and CP38. Supplied either ground for second operation work or serrated for first operation.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Ground or Serrated | Length (mm) | Width (mm) | Height of Clamping Face (mm) | Mounting holes | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CP30-12100-G | Ground | 100 | 35 | 10 | 12 | £43.75 | ||
| 1 | CP30-16130-G | Ground | 130 | 40 | 14 | 16 | £43.75 | ||
| 1 | CP30-12100-S | Serrated | 100 | 35 | 10 | 12 | £47.14 | ||
| 1 | CP30-16130-S | Serrated | 130 | 40 | 14 | 16 | £57.29 |
