TM Series

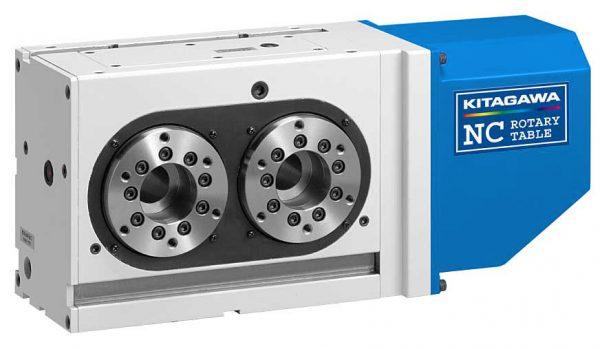

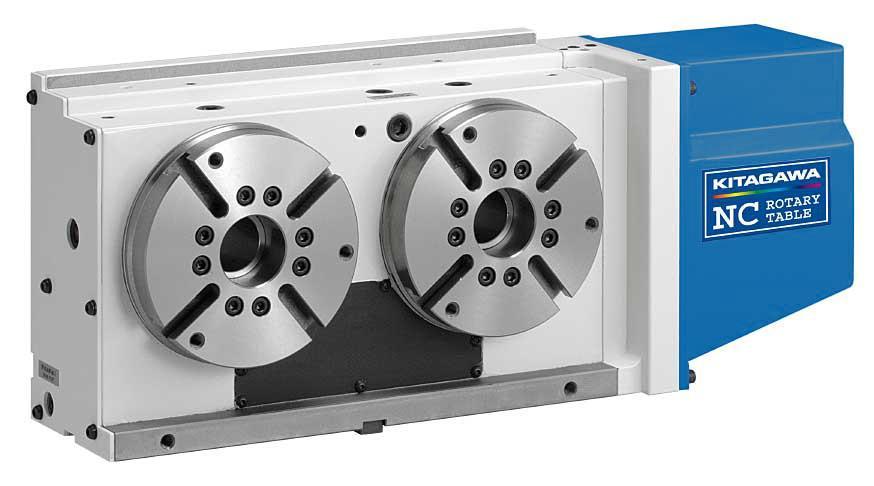

Multi-Spindle 4th Axis Rotary Table
Key Features
- Multi spindle range for multiple work piece machining
- Mono-block body & compact design
- Ideal for tapping machines with high speed rotation

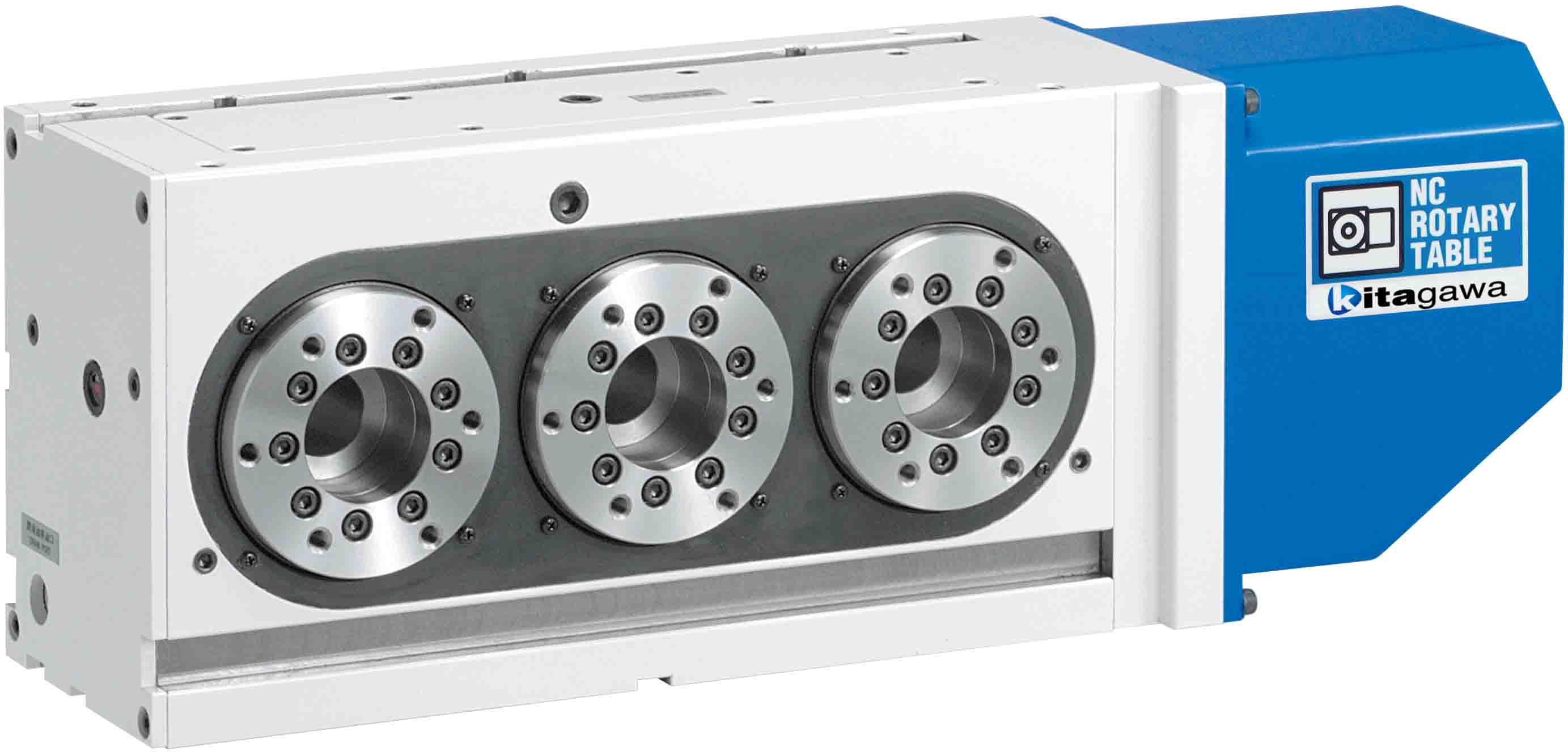

- Available with two or three spindles
Description
Multi Spindle Rotary Tables with compact design and high accuracy. The TM series allows multiple workpiece machining in a single set-up. Ideal for complex milled and drilled workpieces like clevises, shafts and universal joints, the TM series tables allow you to combine machining operations without being limited to single component machining. Multi spindle rotary tables are a good fit for large batch production and are available with all motor types in right- or left-hand configurations to suit a variety of machine models. Price excludes motor and interface cables. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Number of Spindles | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TM2100 | 105 | 32 | 110 | 117 | 0.054 | 2 |
|
£16,903.00 | ||
| 2 | TM2160 | 165 | 40 | 140 | 176 / 400 | 0.51 | 2 |
|
£25,050.00 | ||
| 3 | TM3100 | 105 | 32 | 110 | 117 | 0.054 | 3 |
|
£22,387.00 | ||
| 4 | TM3160 | 165 | 40 | 140 | 176 / 400 | 0.51 | 3 |
|
£31,412.00 | ||
| 5 | TM2100RAV00 | 105 | 32 | 110 | 117 | 0.054 | 2 | £26,560.00 | |||
| 6 | TM2160RAV00 | 105 | 32 | 110 | 117 | 0.054 | 3 | £32,088.00 | |||
| 7 | TM3160RAV00 | 165 | 40 | 140 | 176 / 400 | 0.51 | 3 | £41,076.00 |
