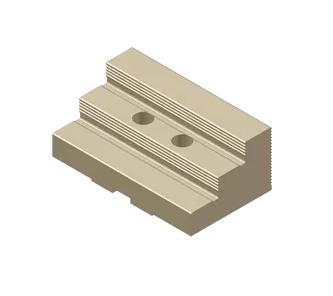

Tongue and Groove Step Jaws

To Suit BEST Vices

Key Features

  • Hardened for Longevity
  • Clamping Surface is Grooved to Avoid Marking Component
  • Custom Sizes Available

Description

For clamping workpieces that must not be damaged. The clamping surface is grooved and not ribbed. This results in reducing the potential for marking components. The stepped jaw is hardened approx. 0.2 mm deep. The accuracy of the surface with respect to the serration is +/- 0.02 mm. For greater accuracy, the jaws must be ground in tension on the vice.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Vice Type Number of Steps Width (mm) Step Height (mm) Clamping Range (mm) Price
1 301-0065-002 BSM-115-KV 3 65 8 .4-92 £457.00
1 301-0070-003 BSM-140 3 70 10 2-130 £482.00
1 301-0094-003 BSM-180 3 94 10 4-172 £594.00
1 301-0125-003 BSM-250/BSM-500 3 125 10 2-210 | 2-456 £719.00
1 301-0160-001 BSM-250/BSM-500 3 160 20 2-194 | 2-440 £1,344.00
1 301-0160-003 BSMG-500 3 160 15 2-490 £1,725.00
