Tongue and Groove Vario Jaws

To Suit BEST Vices

Key Features

  • Adjustable for a range of sizes
  • Inserts can be replaced when worn
  • Alternative inserts are available
  • Pendulum Option Available

Description

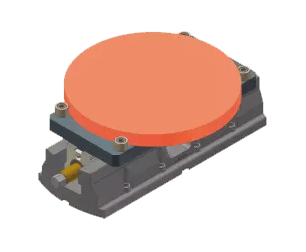

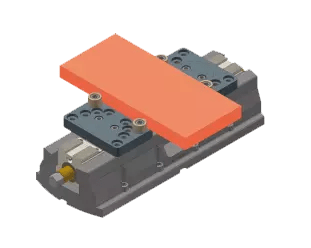

Cylindrical and cubic workpieces can be clamped with the Vario jaw. The clamping inserts can be placed at different points of the jaw, thus can be covered with a jaw set a large range of parts. By exchanging the clamping inserts both raw parts and workpieces can be clamped for finishing. Please indicate when ordering the jaws, for which application you need the jaws. The clamping inserts must be ordered separately. Other sizes available on request.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Vice Type Width (mm) Clamping Range (mm) Price
1 303-0200-001 BSM-500 200 12-414 | 72-445 £1,788.00
1 303-0200-004 BSM-250/BSM-500 200 32-262 | 53-267/32-510 | 53-516 £1,788.00
1 303-0160-001 BSM-180 160 8-180 | 116-216 £1,532.00
1 303-0160-002 BSM-250/BSM-500 160 14-205 | 130-263/14-450 | 116-466 £1,588.00
