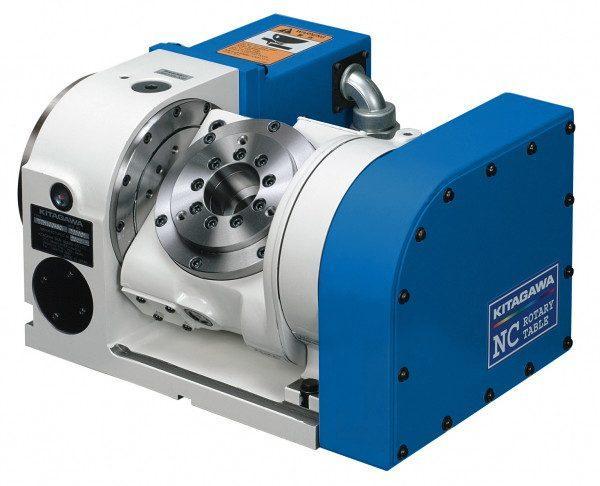

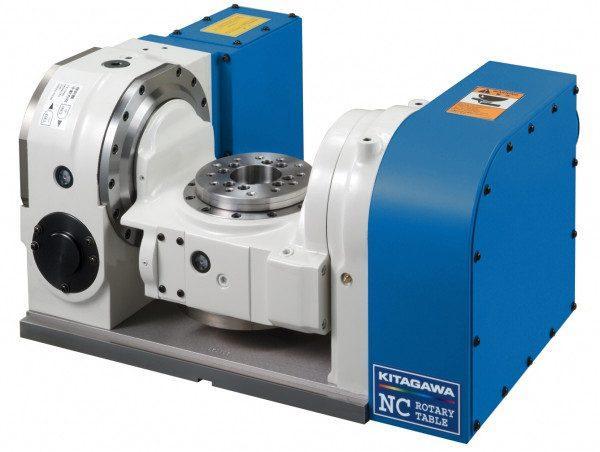

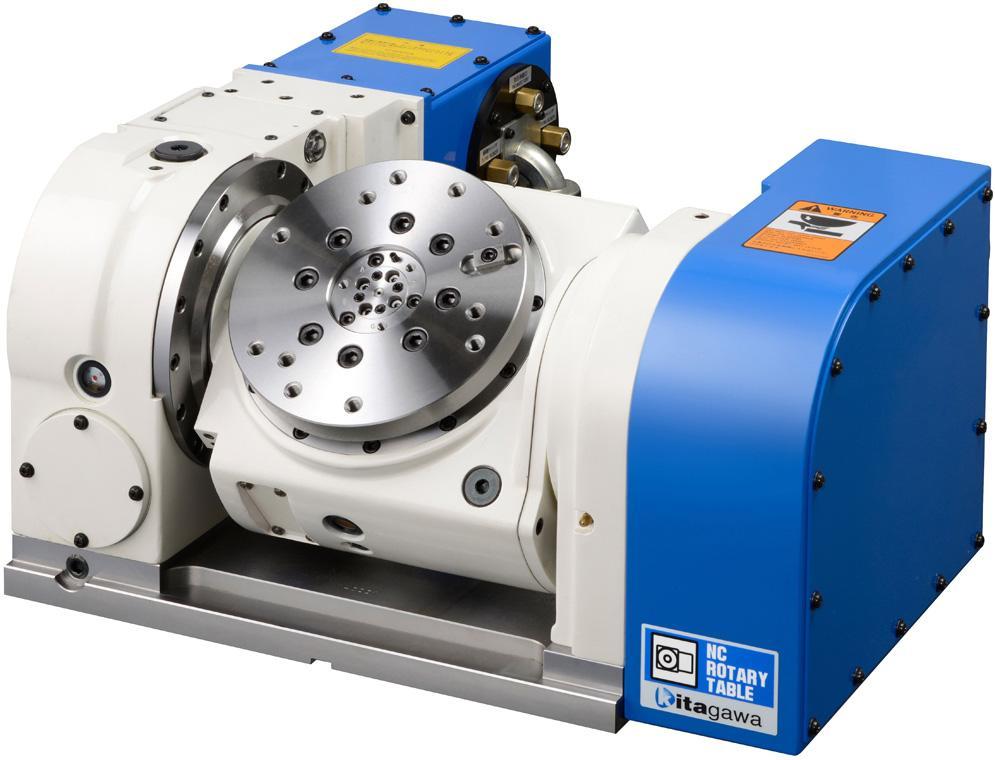

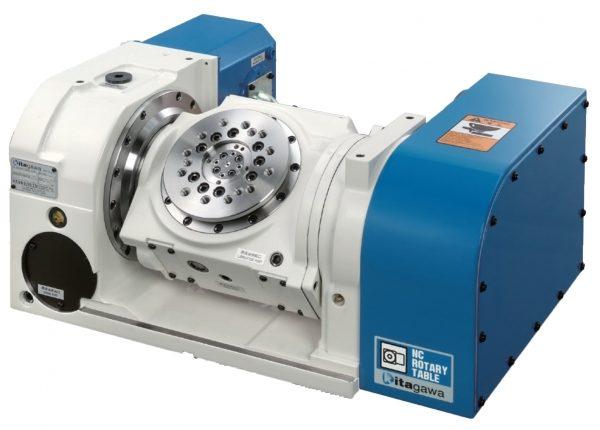

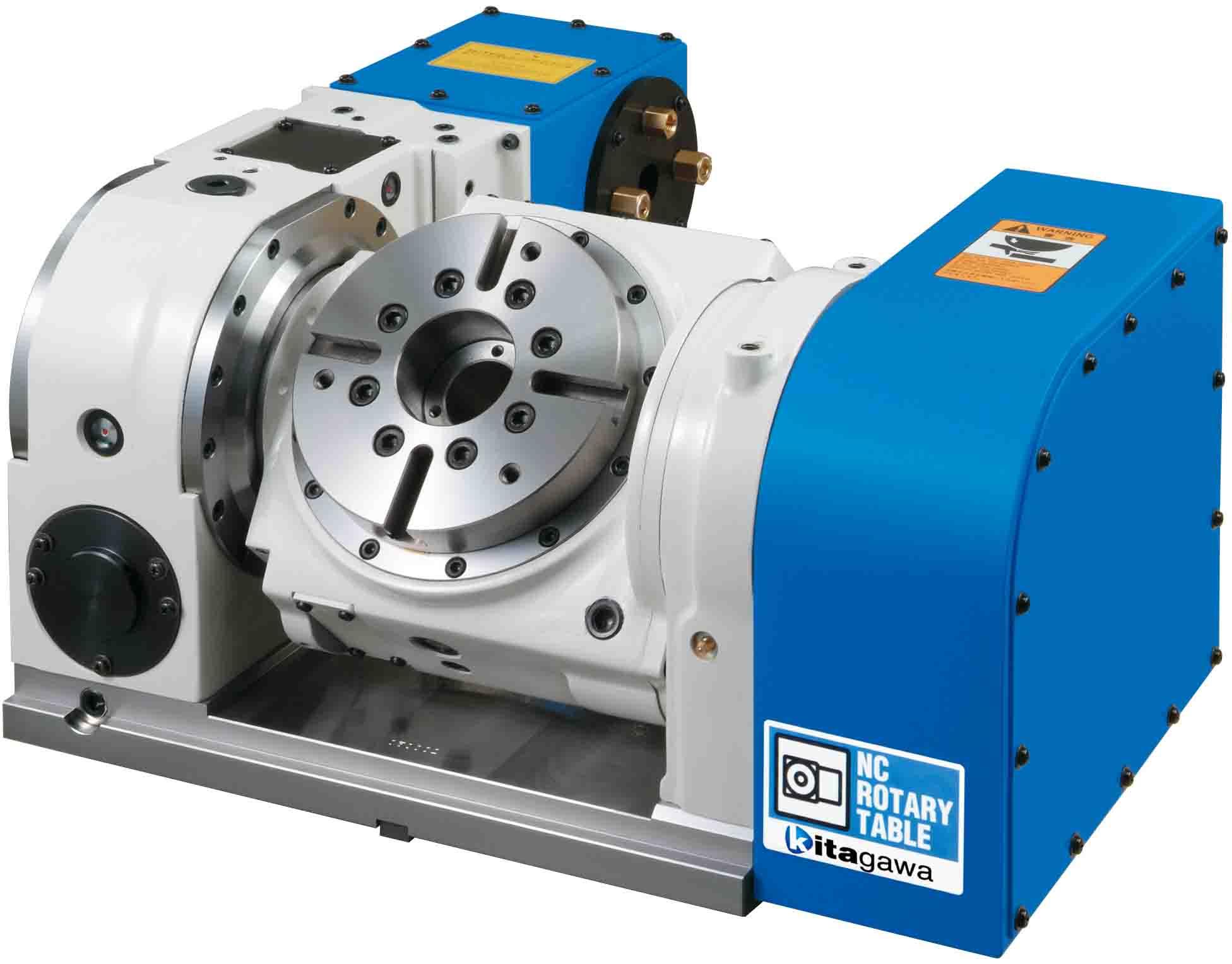

TT Series
Standard 5th Axis Rotary Table
Key Features
- Compact 5th axis design
- High Clamping torque
- Compatible with standard accessories
Description
A tilting typ rotary table with compact design and high accuracy, suitable for 4th and 5th axis machining. The TT series allows for 5th axis machining on standard 3 axis machines either through intergration with the machine control or with an external control. 5th axis prepared machines require for machine control intergration. AV and HV specification comes with an external controller that functions off a spare M-Code; used for machines that do not have 5-axis preperation.
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TT101 | 110 | 32 | 140 | 0.05 | 4 |
|
£21,420.00 | ||
| 2 | TT140 | 140 | 32 | 200 | 0.12 | 4 |
|
£25,762.00 | ||
| 3 | TT150 | 150 | 40 | 150 | 0.14 | 4 |
|
£26,522.00 | ||
| 4 | TT182 | 180 | 40 | 180 | 0.25 | 4 |
|
£27,581.00 | ||
| 5 | TT200 | 200 | 40 | 180 | 0.3 | 4 |
|
£33,983.00 | ||
| 6 | TT251 | 250 | 70 | 225 | 0.78 | 4 |
|
£37,491.00 | ||
| 7 | TT321 | 320 | 110 | 255 | 1.92 | 4 |
|
£44,434.00 | ||
| 8 | TT101AV00 | 110 | 32 | 140 | 0.05 | 4 | £35,411.00 | |||
| 9 | TT140AV00 | 140 | 32 | 200 | 0.12 | 4 | £40,832.00 | |||
| 10 | TT150AV00 | 150 | 40 | 150 | 0.14 | 4 | £41,730.00 | |||
| 11 | TT182AV00 | 180 | 40 | 180 | 0.25 | 4 | £42,911.00 | |||
| 12 | TT200AV00 | 200 | 40 | 180 | 0.3 | 4 | £51,635.00 | |||
| 13 | TT251HV00 | 250 | 70 | 225 | 0.78 | 4 | £54,455.00 | |||
| 14 | TT321HV00 | 320 | 110 | 255 | 1.92 | 4 | £62,790.00 |
