TU Series
4th Axis with Top Mounted Motor
Key Features
- Top mounted motor for horizontal milling machines
- Air booster or hydraulic clamping for high rigidity
- High speed and accuracy
- Suitable for heavy machining
Description

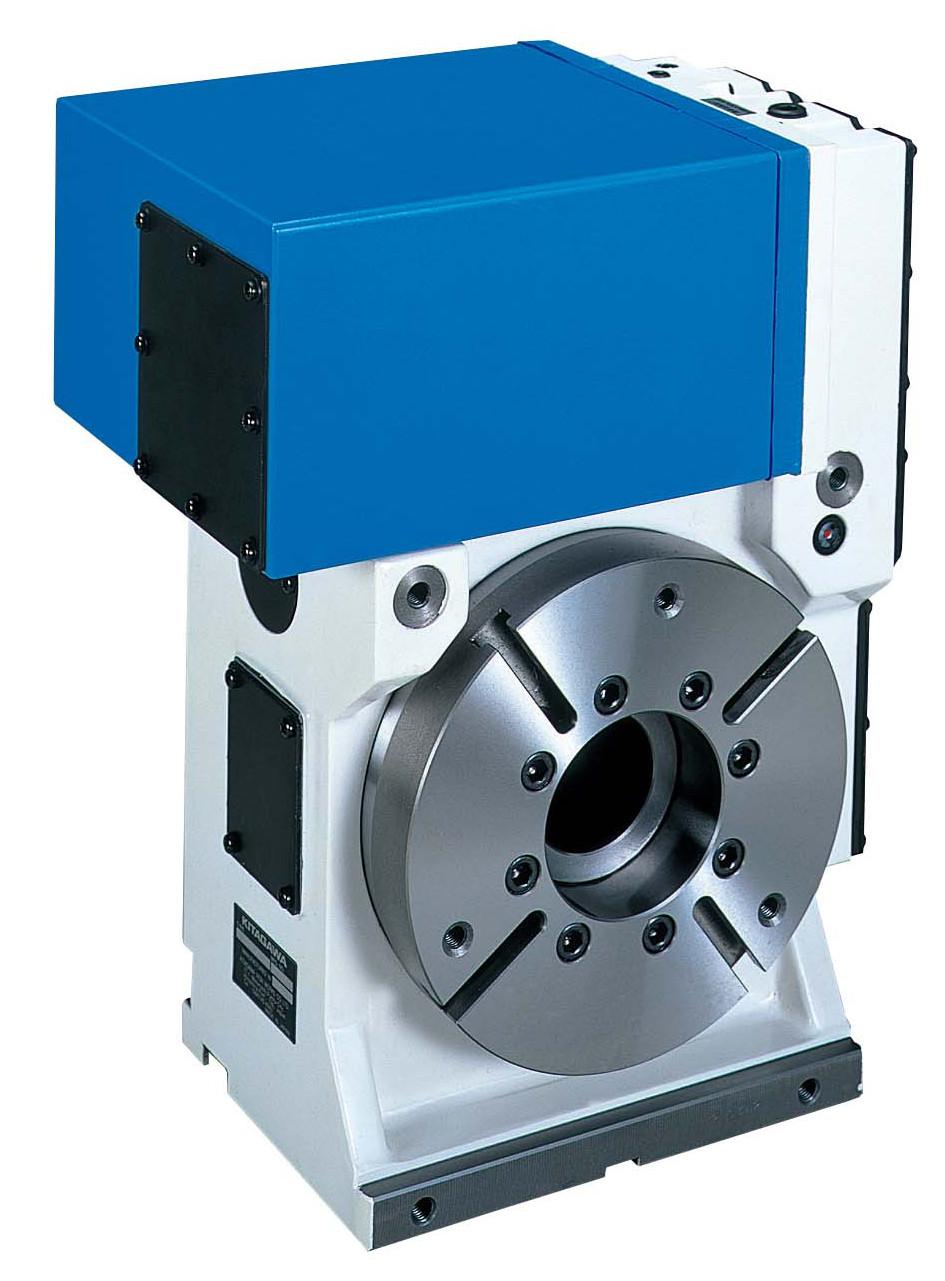

TUX200 Rotary Table with top mounted motor suitable for horizontal machines. Integrated air booster provides high clamping torque from a standard air supply. The TU range of rotary tables are available with hydraulic clamping or with an integrated air booster and pneumatic clamping. This provides very high levels of clamping torque for rigidity during heavy machining operations. Kitagawa's Rotary Tables are available with optional tailstock, and tail spindle. Price excludes motor and interface cables If your machine is not 4th axis prepared, the TU range of rotary tables are available with Kitagawa controllers. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TUX200 | 200 | 52 | 140 | 600 | 0.5 | 4 |
|
£17,199.00 | ||
| 2 | TUX250 | 250 | 78 | 180 | 1100 | 0.98 | 4 | £21,768.00 | |||
| 3 | TUX320 | 320 | 110 | 225 | 2600 | 2.24 | 4 |
|
£23,875.00 | ||
| 4 | TUX200RAV00 | 200 | 52 | 140 | 600 | 0.5 | 4 | £30,435.00 | |||
| 5 | TUX250RAV00 | 250 | 78 | 180 | 1100 | 0.98 | 4 | £32,124.00 | |||
| 6 | TUX320RAV00 | 320 | 110 | 225 | 2600 | 2.24 | 4 | £37,110.00 |
