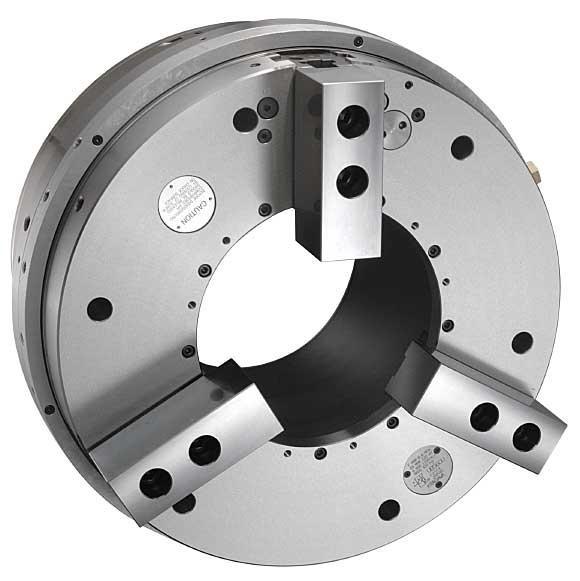

UB..K Series
Pnuematically Operated Big Bore 3 Jaw Chuck
Key Features
- Self Contained Pneumatic Unit
- Compatible with large, readily available, range of jaws
- Detectable jaw location
- Larger bore for pipe work
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa UB-K series are large bore pneumatic chucks idela for pipe work with the ability to detect jaw position and internal pressure. UB-K series chucks are supplied with a set of t-nuts as standard.
Estimated delivery: On Request
Dimensions
| # | Part No | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Max. Pressure (Mpa) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | UB450K | 181 | 14 | 100 | 1300 | 0.6 |
|
£26,368.00 | ||
| 2 | UB630K | 320 | 17 | 162 | 1000 | 0.6 |
|
£55,372.00 | ||
| 3 | UB710K | 375 | 22 | 144 | 900 | 0.6 |
|
£72,780.00 |
