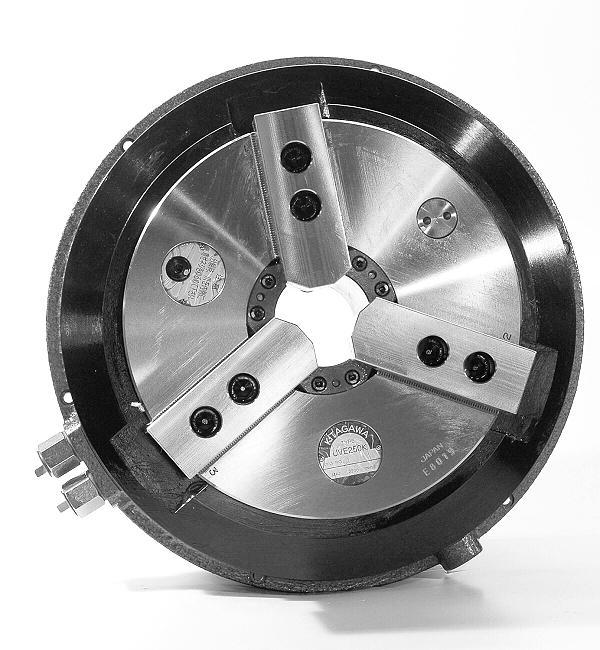

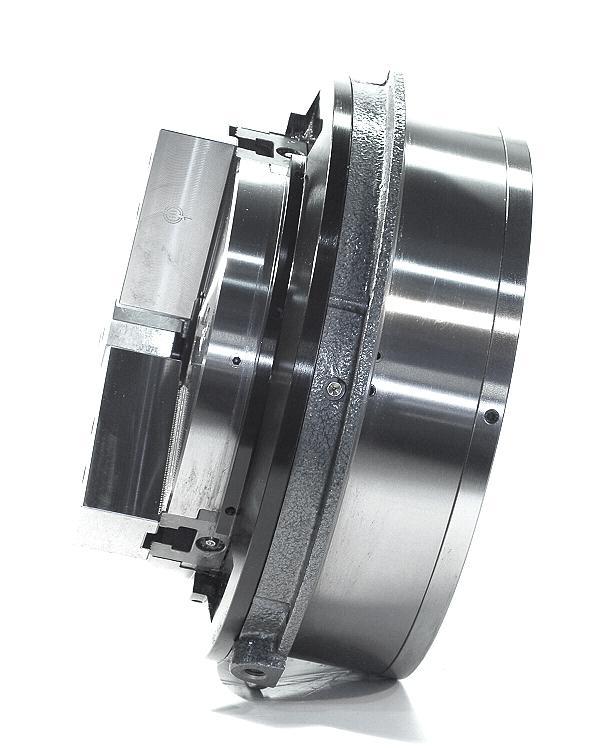

UVE..K Series
Pnuematically Operated 3 Jaw Chuck
Key Features
- Self Contained Pneumatic Unit
- Compatible with large, readily available, range of jaws
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa UVE-K series is a self contained pneumatic chuck using a supply ring to provide air pressure to the chuck. UVE-K series chucks are supplied with a set of t-nuts as standard.
Estimated delivery: On Request
Dimensions
| # | Part No | Chuck Bore (mm) | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Max. Pressure (Mpa) | Matching Soft Jaw | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | UVE160K | 38 | 8.4 | 45 | 3600 | 0.6 | SB06C1 |
|
£5,036.00 | ||
| 2 | UVE200K | 50 | 8.4 | 54 | 3200 | 0.6 | SB10B1 |
|
£5,639.00 | ||
| 3 | UVE250K | 60 | 9.8 | 90 | 3000 | 0.6 | SB10B1 |
|
£6,857.00 | ||
| 4 | UVE315K | 92 | 9.8 | 111 | 2500 | 0.6 | SB12C1 |
|
£8,515.00 | ||
| 5 | UVE400K | 120 | 14 | 210 | 1800 | 0.6 | SB15A2 |
|
£22,281.00 |
