Vacmagic VM100
Vacuum Clamping
Key Features
- No vacuum pump required
- Precise pallet location
- Compatible with VM300 and VM100 pallets
- Excellent solution for grinding non-magnetic material
Description

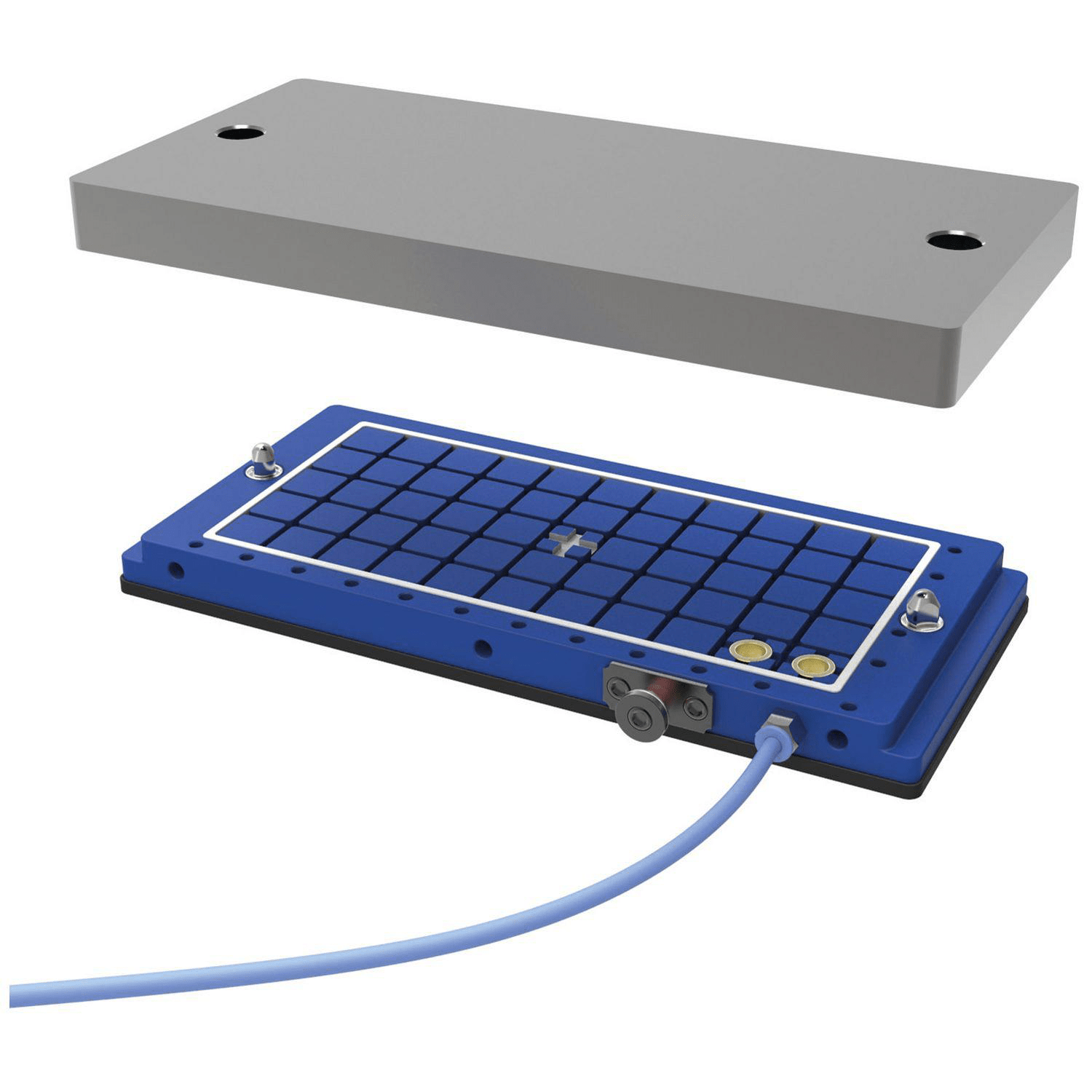

The Vacmagic VM100 was primarily designed for grinding non-ferrous material on a magnetic chuck. During the early stages of R & D it was discovered the VM100 could be much more. Clamp the Vacmagic VM100 in a vise to reduce setup time, use as a pallet changer or mount to a grid plate or T-slot table. The VM100 uses the same patented method as the VM300 to produce a vacuum strong enough for industrial applications but still operates on shop air! No need for vacuum pumps and coolant traps. We include everything necessary to get your VM100 running within minutes of opening the box. Will also accept the standard VM300 Vacuum pallet for increased vacuum platform as well as Vacmagic gasket material. https://www.1mta.com/product-category/milling/vacuum-workholding/
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Description | Length (mm) | Width (mm) | Height (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 45300 | VM100 Kit | includes base unit and 2 blank pallets | £2,261.96 | |||||
| 1 | 45375 | Base unit with all hardware | 315 | 140 | 25 | £2,075.68 | ||
| 1 | 45325 | Blank pallet | 318 | 150 | 25 | £133.06 |
