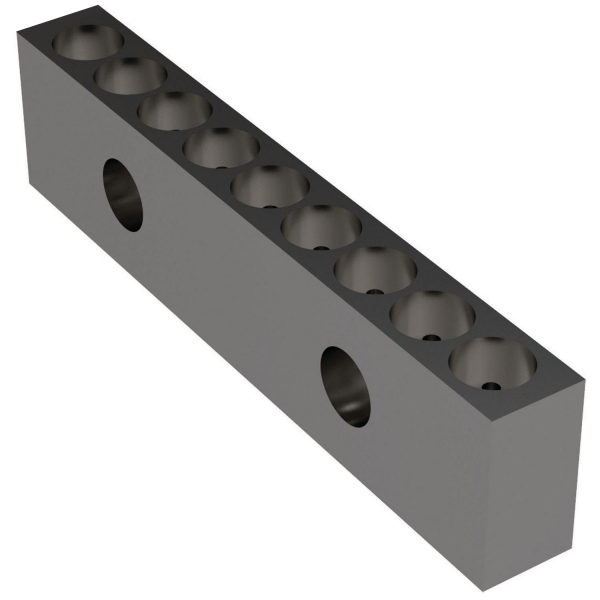

VersaGrip Vise Jaws
To Suit Round Components
Key Features
- Aggressive machining operations while clamping on as little as 1.5mm
- Ideal for difficult applications or proto-type work
- Easily conform to round or complex profiles
- Grippers hardened to 51-53 RC
Description
Increase the functionality of your standard 100mm, 150mm and 200mm vices. VersaGrip is a simple bolt on system that will allow you to perform aggressive machining operations on round or complex parts while clamping on as little as 1.5mm. VersaGrip has penetrating teeth designed to bite into your workpiece preventing lateral and horizontal movement. These grips will hold flame cut parts, castings, even parts with a negative draft. By simply replacing your current jaws with the VersaGrip system you can securely hold odd shaped parts while machining at speeds and feeds you never thought possible. Grippers for integration into fixtures and soft jaws are available to purchase seperately (Set includes 4 VersaGrip with M5 Screws)
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Width (mm) | Height (mm) | Thickness (mm) | Hole pitch (mm) | Hole height (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 32166 | WITH HOLES | 150 | 47.75 | 25.4 | 63.5/98.55 | 17.47/23.87 | £246.22 | ||
| 1 | 32168 | WITH HOLES | 200 | 47.75 | 25.4 | 98.55 | 23.87 | £266.12 | ||
| 1 | 33166 | WITHOUT HOLES | 150 | 47.75 | 25.4 | N/A | N/A | £246.22 | ||
| 1 | 33168 | WITHOUT HOLES | 200 | 47.75 | 25.4 | N/A | N/A | £266.12 |
