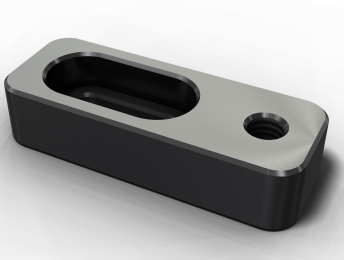

Workpiece Stop Plate (SVF-S06)
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description
Workpiece stop plate for SVF range of flexible vices. These work stops can be mounted to the side of the base of an SVF vice to position the workpieces. Combine them with SVF-S05 spacers for even more flexibility.
Estimated delivery: On Request

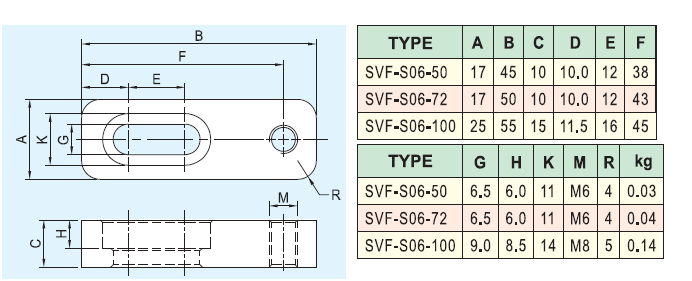

Dimensions
| # | Part No | Thickness (mm) | Length (mm) | Thread | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | SVF-S06-50 | 10 | 45 | M6 |
|
£18.67 | ||
| 2 | SVF-S06-72 | 10 | 50 | M6 |
|
£18.67 | ||
| 3 | SVF-S06-100 | 15 | 55 | M8 |
|
£23.10 |
